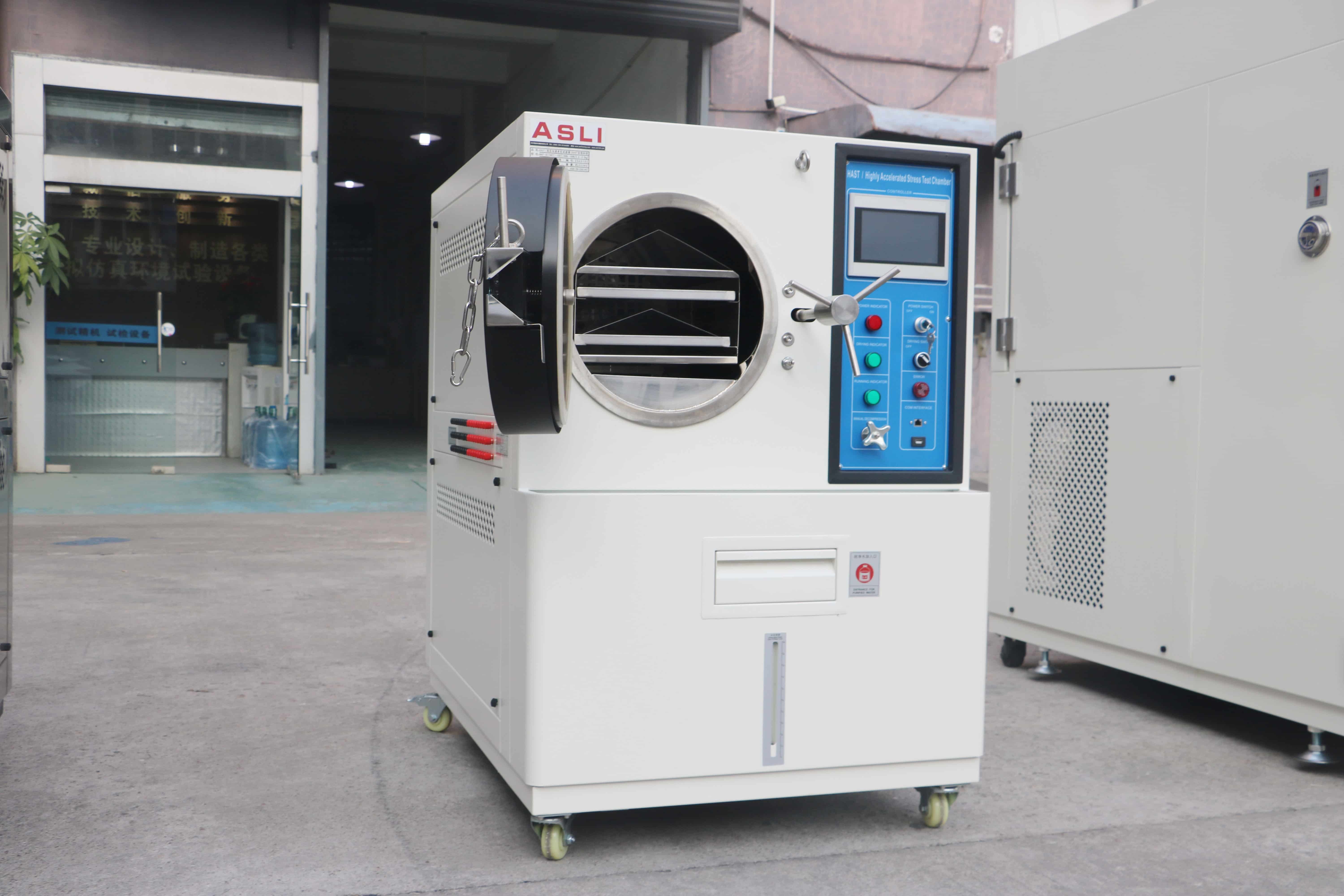

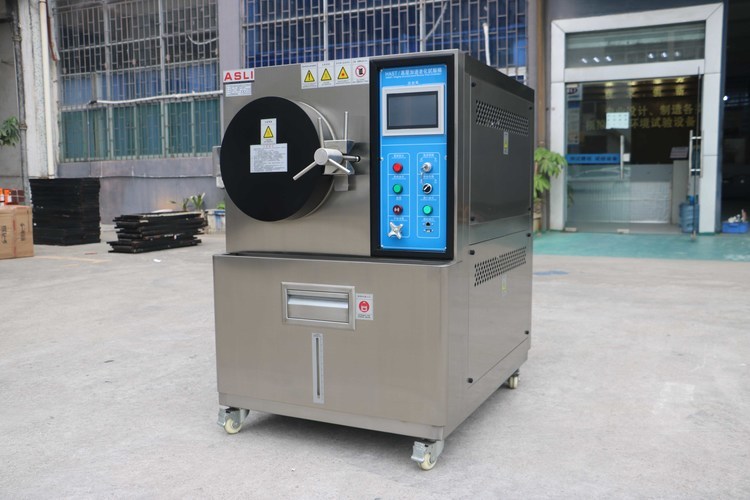

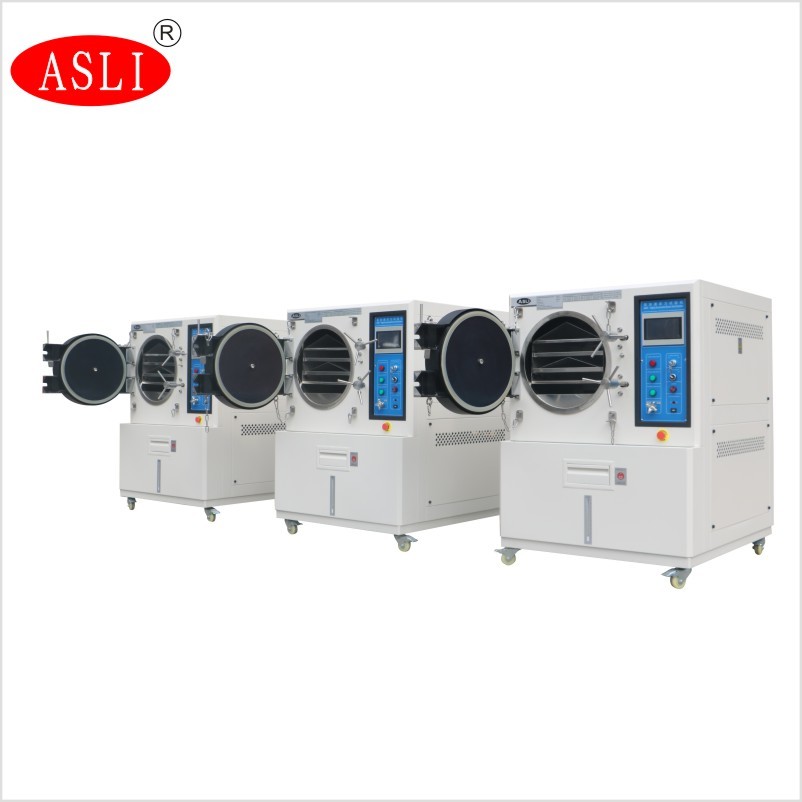

High Pressure Accelerated Aging Life Environmental Test Chamber
opis produktu
Product Description
Economical to meet the needs of your budget
Easy move-in and assembly
Accept OEM/ODM
Choice of interior and exterior finishes to meet your laboratory requirements
Configurable to any size to fit your needs
Provide on-site service & installation & commissioning& training
High Pressure Accelerated Aging Life Climate Test Chamber is widely applied to the testing of sealing property for multi-layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.
Specification
Internal Dimension Φ×D (mm)
300×250
350×450
450×550
550×650
650×750
External Dimension Φ×D (mm)
850×1300×900
900×1350×900
1000×1480×1000
1150×1650×1200
1300×1800×1350
Steam Temperature Range
Steam Temperature Range: 100ºC~135ºC, (143 is optional)
Relative Pressure/ Absolute Pressure
Relative pressure: display values indicated on the pressure gauge Absolute pressure: Value that add 100 Kpa based on display values indicated on the pressure gauge (The actual value in the inner box)
Steam Humidity
70~100%R.H. steam humidity adjustable or keep 100%R.H.
Steam Pressure (Absolute Pressure)
101.3Kpa +0.0Kg/cm2~2.0Kg/cm2 ; (3.0~5.0Kg/cm2 is special standard)
Recursive Device
Steam in forced-circulation
Safety Protective Devise
Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure
function )
PCT Aging Test Chamber Feature:
1. Automatic adding water function, and automatic filling water upon the water short storage while testing.
2. Automatic operation to test process finished, easy to use.
3. Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and display.
4. LED digital timer, when the inner box's temperature reached the setting value, then start to time to ensure the test complete.
5. Accurate pressure: Temperature chart always shows the inner box's pressure and relative humidity.
6. Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
7. A integrated silica gel door gasket, air tightness is very good, and long operation life.

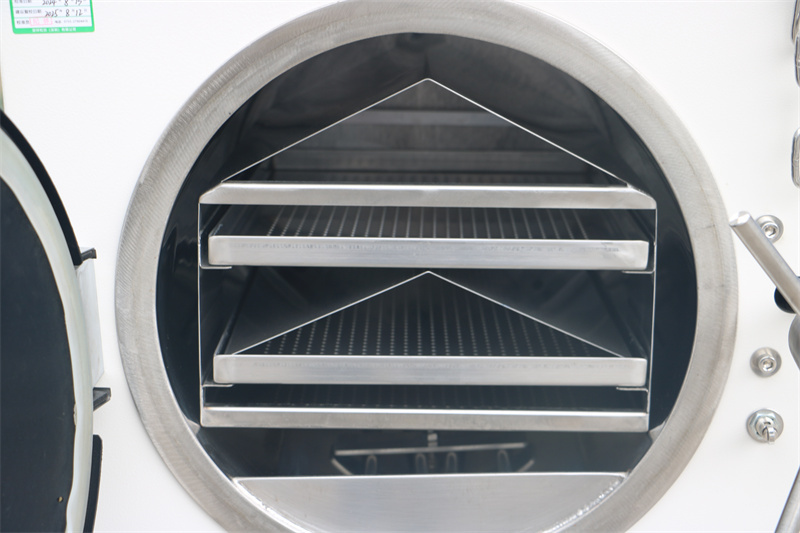

8. The inner box is mirror-polished, graceful and non-pollution
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

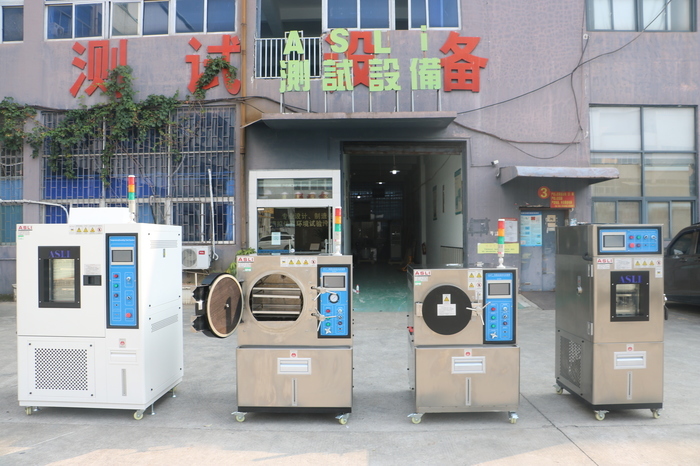

We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and mechanical vibration and shock testing machine. pct accelerated aging tester is our star products , and we had obtained the CE certification for this machine .
