Wielkość próbki:1000x800x1000mm lub niestandardowe
Aplikacja:Produkty opakowaniowe
spełniają normę:ista, astm
Metoda upuszczania:Twarz, krawędź, kąt
prędkość spadania:Wolny upadek
Zasilanie:AC380V, 3 fazy 5 linii
Podkreślić:
high precision drop test system
,
packaging drop test machine
,
mechanical shock testing equipment
Podstawowe informacje
Miejsce pochodzenia:Chiny
Nazwa handlowa:ASLI
Orzecznictwo:CE, ISO,SGS, BV
Numer modelu:AS-DT-150
Zapłata
Szczegóły pakowania:mocno drewniana obudowa
Czas dostawy:20 dni roboczych
Zasady płatności:T/T
Możliwość Supply:30 zestawów miesięcznie
Galeria

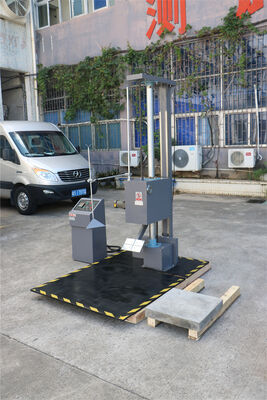

Free Fall High Precision Drop Test System for Packaging Products
opis produktu
Product Description
300~1500mm drop height, adjustable
The drop height can customized
The machine can add guardrail
With Limit switch for protection machine
Free Fall High Precision Drop Test System for Packaging Products is applied to assess the package in the actual transportation, loading and unloading process by dropping the degree of impact, impact-resistant strength and evaluate the reasonable of packaging design.
Specification
Model
AS-DT-120
AS-DT-150
AS-DT-200
Max. Weight of Test Samples (Kg)
≥200
100
100
Height of Drop (mm)
0~1200
300~1500
300~2000
Max. Dimension of Test Sample WxHxD (mm)
1200x1200x1200
1000x800x1000
1000x800x1000
Falling Floor Size WxHxD (mm)
1400x50x2000
1700x50x1200
1700x50x1200
Drop Method
Face, edge, angle
Test Bench External Dimension WxHxD (mm)
1400x2000x1800
1700x2700x1200
1700x2700x1200
Weight (Kg)
1500
600
700
Power Supply
AC380V, 3 phase, 5 lines
Carton Drop Test Machine Feature: 1. Outside material: Advanced paint coat
2. Display: LCD display
3. Power system: Drive device(imported motor + speed reducer +Axel+ upper and lower limitation + spring + electromagnet) + dropping device (dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)
4. Control system: Adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control.
5. Safety device: Upper and lower limitation device, automatic off-power device if electricity leakage occurs
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Free Fall High Precision Drop Test System for Packaging Products is our star products , and we had obtained the CE certification for this machine .
