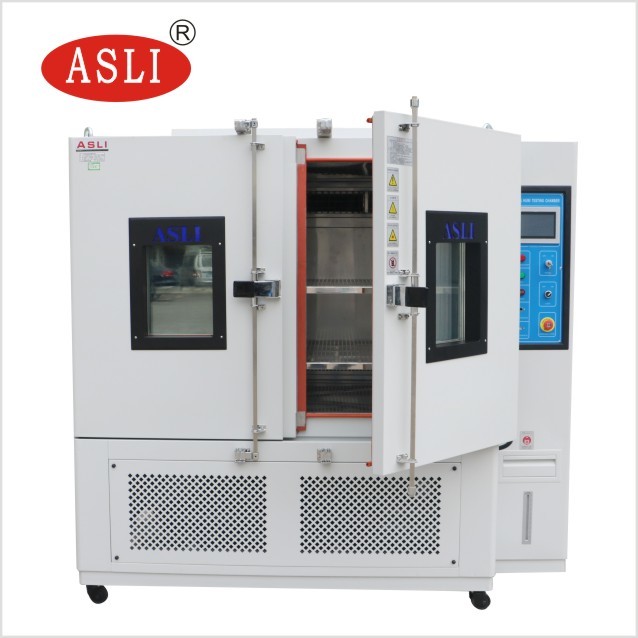

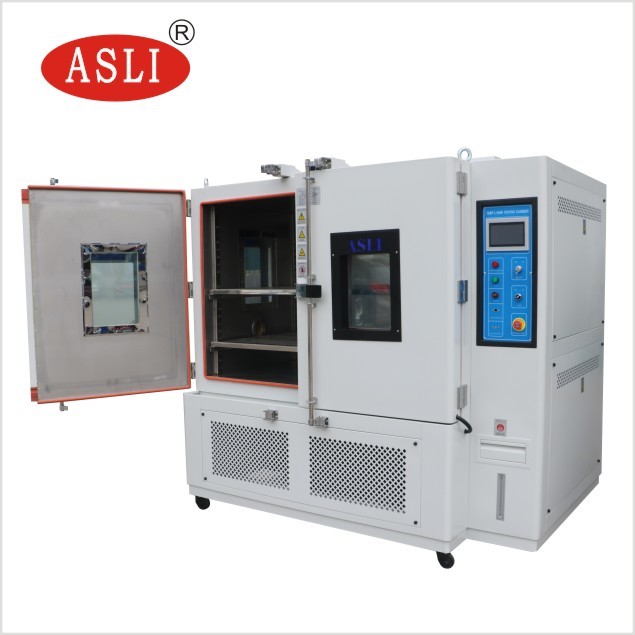

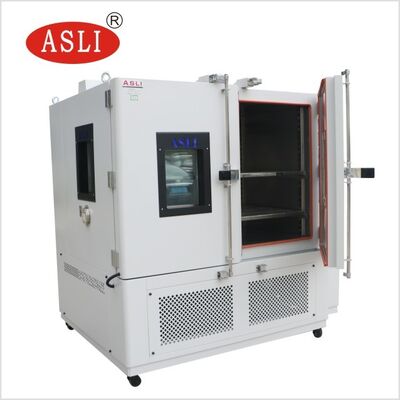

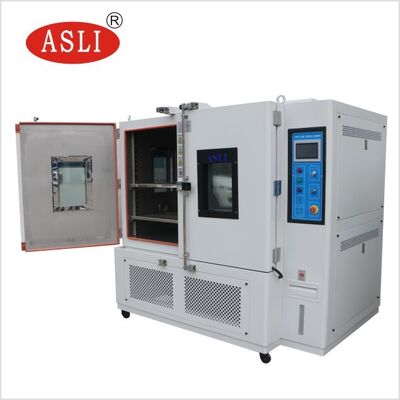

| Model | TH-volume (A~F) |
|---|---|
| Internal Dimension WxHxD (mm) | 500x500x500 or customized |
| External Dimension WxHxD (mm) | 1000x1900x1000 |
| Temperature Range | Low Temperature (A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 150°C |
| Humidity Range | 10%~98% R.H. (5%-98% R.H optional, requires dehumidifier) |
| Indication Resolution/Distribution Uniformity | 0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H. |
| Control Accuracy | ±0.5°C; ±2.5% R.H. |
| Temperature Rising/Falling Velocity | Rising: 0.1~3.0°C/min; Falling: 0.3~1.0°C/min (other speeds available upon request) |
| Material Construction | Interior: SUS 304# stainless steel; Exterior: stainless steel or SEE cold-rolled steel with paint coating |
| Insulation Material | High-temperature resistant, high-density formate chlorine and ethyl acetum foam |
| Cooling System | Wind cooling or water cooling (single segment compressor -40°C, double segment compressor -70°C) |
| Protection Devices | Fuse-free switch, compressor overload protection, high/low voltage coolant protection, over-humidity/temperature protection, fuses, fault warning system, water shortage warning |
