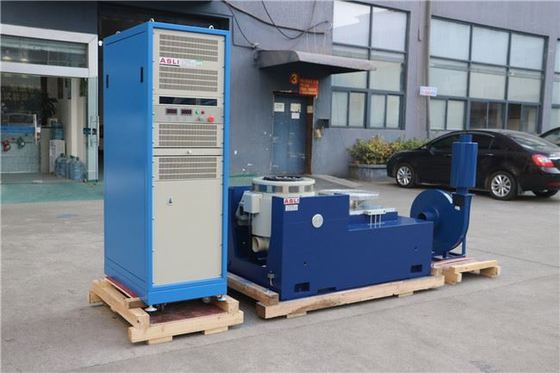

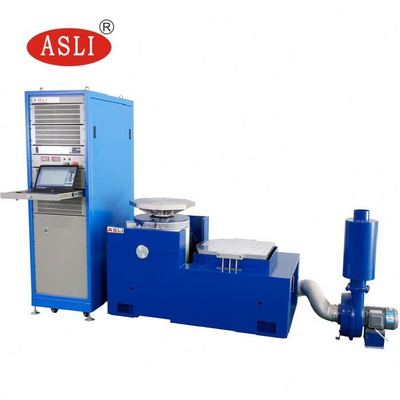

Vibration Tester Equipment With JIS D1601 Standard
The Vibration Tester Equipment with JIS D1601 Standard is designed for product vibration and shock environmental testing, environmental stress screening tests, and reliability testing. It serves as a comprehensive test platform for products in aerospace, communications, electronics, electrical, and home appliance industries, meeting various test specifications including IEC, MIL-STD, JIS, and ASTM standards.
Specifications
| Model |
ES-10 |
ES-20 |
ES-30 |
ES-40 |
| Rated Sine Force (N) |
10000 |
20000 |
30000 |
40000 |
| Frequency Range (Hz) |
3-3000 |
3-3000 |
3-2800 |
3-2800 |
| Rated Acceleration (m/s²) |
1000 |
1000 |
1000 |
1000 |
| Rated Speed (m/s) |
1.8 |
1.8 |
1.8 |
1.8 |
| Rated displacement (p-p) mm |
70 |
80 |
11100 |
100 |
| Max. Loading (Kg) |
270 |
300 |
450 |
500 |
| Moving coil (Kg) |
14 |
30 |
40 |
50 |

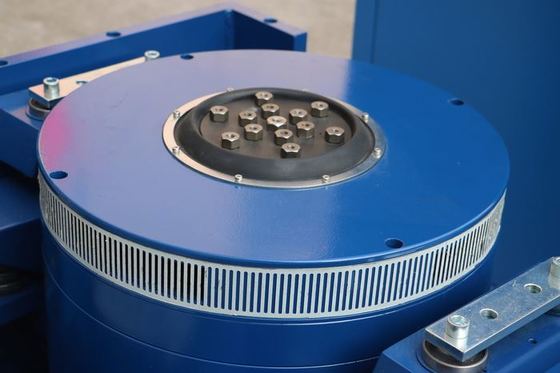

| Dimension of Moving coil (mm) |
Φ240 |
Φ320 |
Φ450 |
Φ450 |
Product Features
- Flexible suspension system and straight line guide with strong bearing capacity, excellent guidance performance, and high stability
- Central load airbag with large static stiffness, small dynamic stiffness, strong bearing capacity, and excellent dynamic performance
- Rapid self-examination diagnosis and chain protection for high safety and reliability
- Air bag isolating and damping device eliminates the need for special foundation, perfectly reproduces vibration waves, and reduces vibration transmission
- Includes horizontal and vertical expansion platforms for different applications
- Compatible with various vibration controllers for simple operation

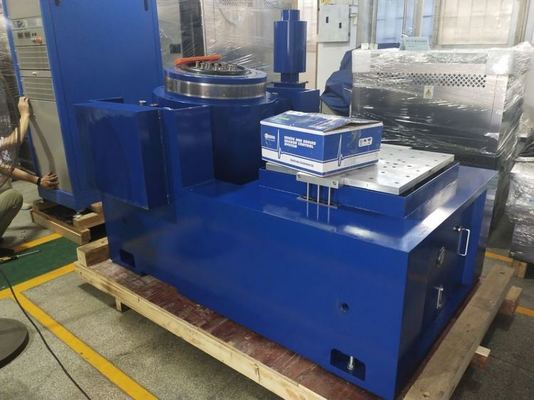

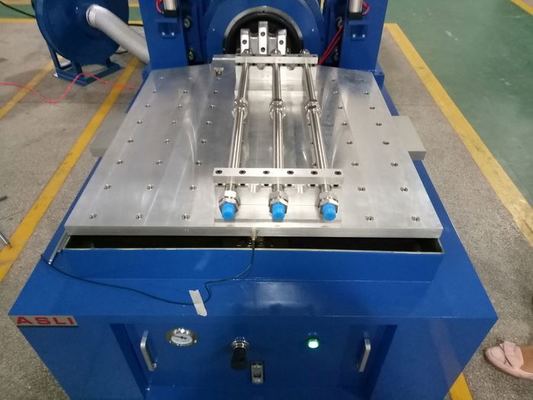

Horizontal Stand Features
- Small loading bench enables higher acceleration and working frequency, improving loading capacity and overall machine performance
- Integral type horizontal bench and vibration bench with perfect structure for easy installation and adjustment
- Static pressure track with V-shape design for slope-resistant and bias-loading resistant capabilities
- Built-in oil pump with good structure for easy operation
Packing & Delivery
Professional, environmentally friendly, convenient and efficient packaging services ensure the safety of your goods during transportation.
Company Profile
With 28 years of experience, we are a dedicated manufacturer of simulation environmental testing equipment and mechanical vibration and shock testing machines. Our horizontal and vertical vibration 3-axis high frequency vibration tester is a star product, certified with CE certification.
Frequently Asked Questions
Q1. What is your terms of packing?
A: PP film first, with 10mm foam between machine and case, and standard export plywood case for exterior protection.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We provide photos of products and packages before final payment.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU, DAP, DDP options available.
Q4. How about your delivery time?
A: Typically 30 to 60 days after receiving advance payment, depending on order items and quantity.
For more information about our Vibration Tester Equipment with JIS D1601 Standard, please contact us.
